Google SSO

Integrating Engagedly with Google using SAML

Step: 1

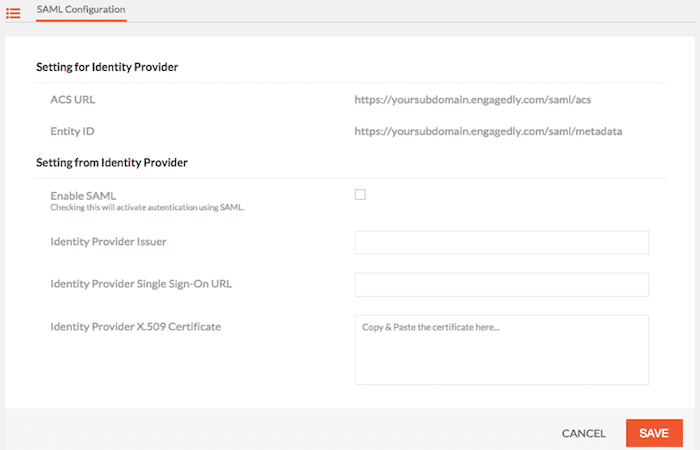

saml-configuration

Log in to Engagedly as a Site Administrator. Go to Settings and click on SAML SSO. This page is divided into two sections:

  1. Information that you need to enter copy from here and input IN the Identity Provider
  2. Information that you need to copy from the Identity Provider and input into Engagedly

Step: 2

Log in into Google as an admin (admin.google.com)> Click on App (You will find it either on Admin Console or under More Controls)

google-admin-console

Step: 3

click-on-saml-apps

Click on SAML apps

Step: 4

Enable SSO for a SAML Application. You can either click on the link or the “+” button provided at the bottom right corner.

no-service-apps

Step: 5

enable-sso-for-saml-application

Honoring the above step a pop-up will appear, click on ‘SETUP MY OWN CUSTOM APP’.

Step: 6

The current pop-up provides two options to setup SSO.

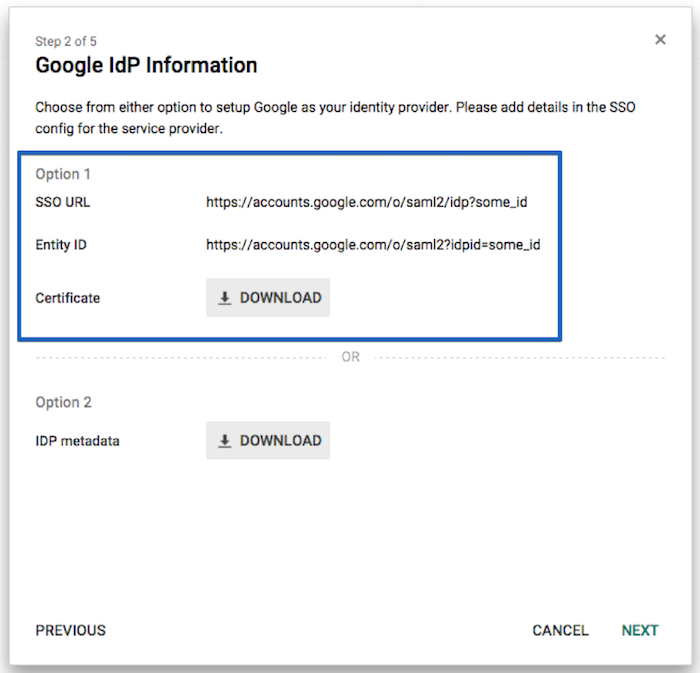

google-idp-information

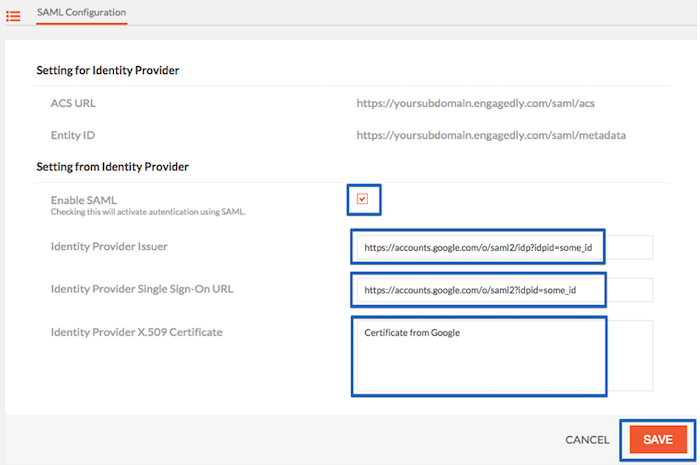

saml-confirguration

From Option 1 please copy and paste the link as mentioned below:

  • Copy the link called ‘SSO URL’, Go to Engagedly > SAML SSO page and paste this link beside the label ‘Identity Provider Single Sign-On URL’
  • Copy the link called ‘Entity ID’, go to Engagedly > SAML SSO page and paste this link beside the label ‘Identity Provider Issuer’
  • Download the certificate, open the certificate in any text editor copy the content, go to Engagedly > SAML SSO page and paste the content beside the label ‘Identity Provider X.509 Certificate’
  • ‘Enable SAML’ on the SAML SSO page in Engagedly by clicking on the check-box> Click on Save button.

Step: 7

google-idp-information-2

Go back to the Google page that has  the pop-up for SAML settings and click on Next.

Step: 8

basic-information-for-your-costom

Input the “Application Name” as  Engagedly and description (optional) and logo (optional) If you choose to add the Engagedly logo please use the Engagedly logo from here:

https://engagedly.com/wp-content/uploads/2015/03/Logo-Engagedly13.png).

Click on Next

Step: 9

saml-confirguration-2

In the next pop-up you are required to provide 2 mandatory details: ACS URL and Entity ID. You will find these values in the SAML SSO page in Engagedly.

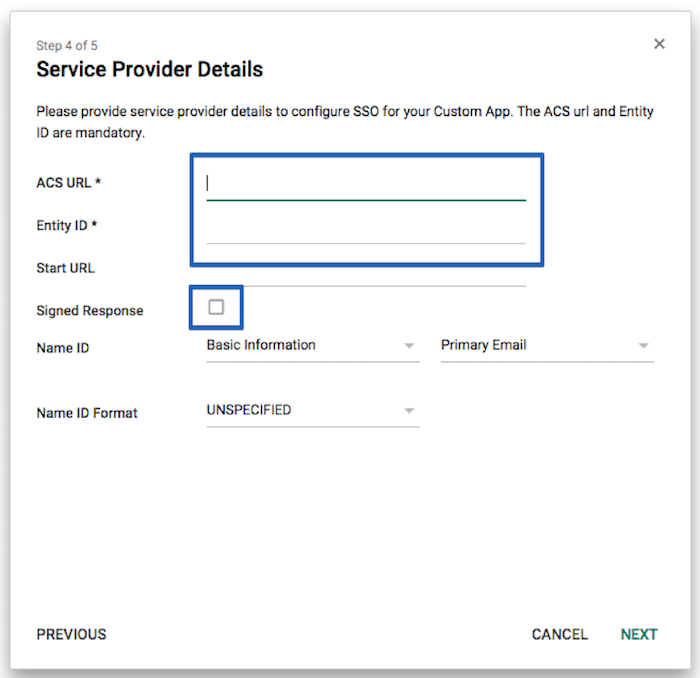

service-provider-details

Copy and paste the link as mentioned below:

  • Copy the link “ACS URL” from Engagedly > SAML SSO and paste it on ACS URL field.
  • Copy the link Entity ID from Engagedly > SAML SSO and paste it on Entity ID field.

Keep the Start URL empty and check the signed response and click on Next.

Step: 10

Attribute-mapping

You don’t have to do anything in the next pop-up, but just click Next and complete the process.

Step: 11

setting-up-sso-for-engagedly

Now you are done with the integration process with Google SSO. Click on OK

Step: 12

Finally you need to enable the Engagedly app for all users from  your Google Administrator account.

Now when users try to login from your custom Engagedly sub domain ( yourorganization.engagedly.com) they will get redirected to the standard Google Login page.

step-12
